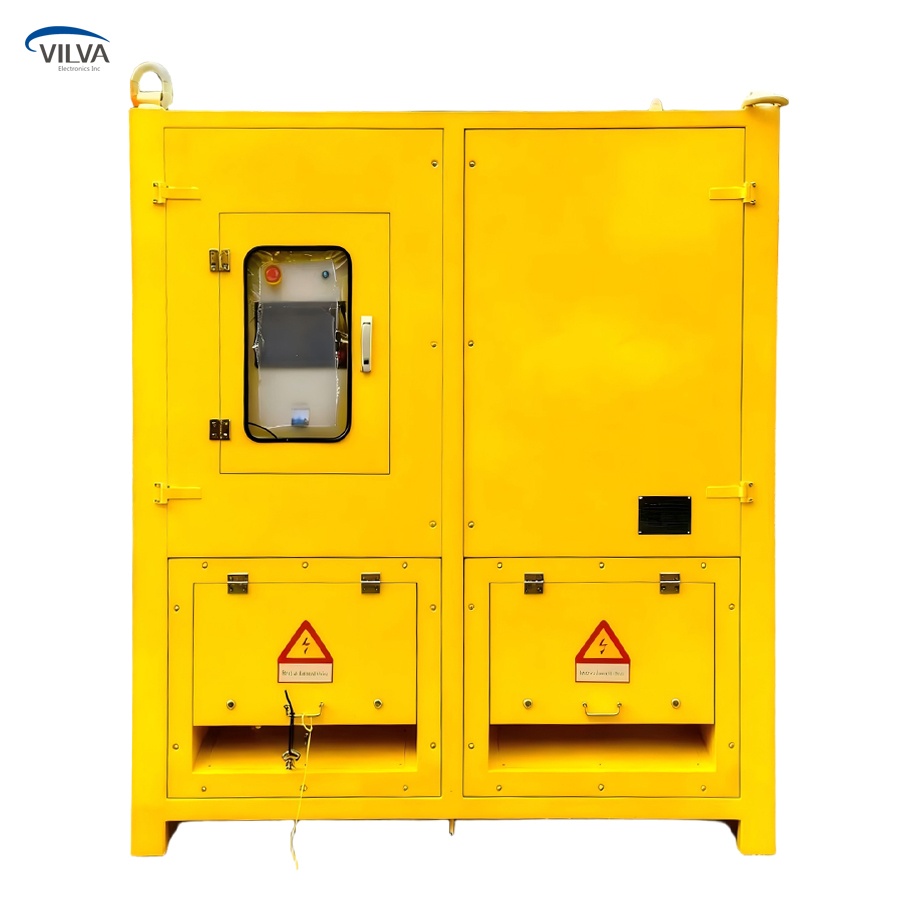

Resistive Load Bankis mainly used for Generator testing at power station, AC power supply, data center and other testing,May detect the performance of different loads of the AC power supply of the power station.The power input is uniformly optimized to meet the needs of different loads.
2.Main advantages: a, Resistive load adopt new type of consumption components,Resistance thermal shrinkage and sealing installed in stainless steel tube, steel tube with insulation radiator, good moisture and corrosion resistance, good heat dissipation, high insulation, safe and reliable.High power density of resistance elements, 3-phase current balance,no red heat phenomenon,The independent cooling fan ensures the heat dissipation and service life of the whole system.b. The load overcomes the fact that the water resistance test system cannot accurately control the resistance value, the water is easy to boil, easy to scale, can not be subjected to sudden loading/depression load reduction test, and is difficult to control.It is an upgraded product of water resistance. This product has high safety, low maintenance cost, low noise and strong overload capability.
c. The fan adopts a small axial fan, with large wind volume, good heat dissipation, how noise and other characteristics.
1.Working environment conditions
1.1. Environmental temperature:- 10～+50℃；
1.2. Relative humidity: ≤ 90%；
1.3. Altitude: ≤ 2500m；
1.4. Seismic intensity: VIII degree;
1.5 Other conditions: limited to indoor use only, with no debris at a distance of ≥ 1 meter from the air inlet and outlet;
2. Rated electrical parameters
2.1 Rated voltage: AC400V；
2.2. Rated current: 722A;
2.3 Rated power: R=500kW；
2.4 Frequency: AC50Hz/60Hz；
2.5 Power factor: PF=1；
3. Technical indicators
3.1 Cooling method: forced air cooling;
3.2. Inlet and outlet direction: side inlet, side outlet;

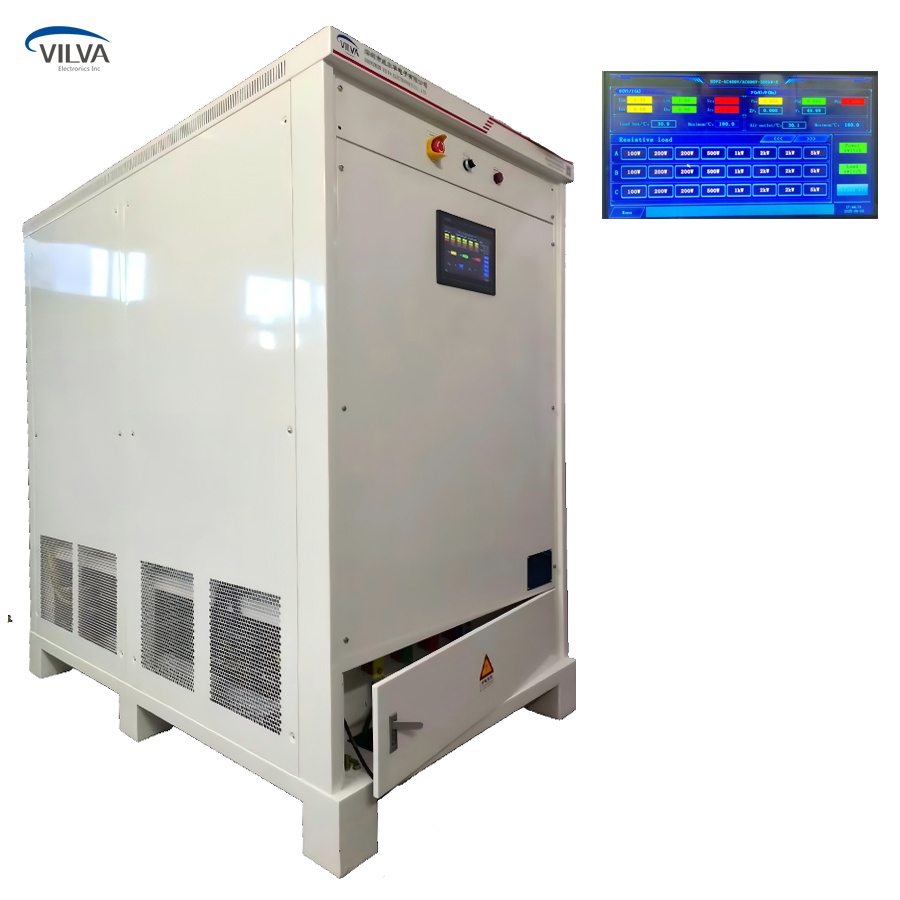

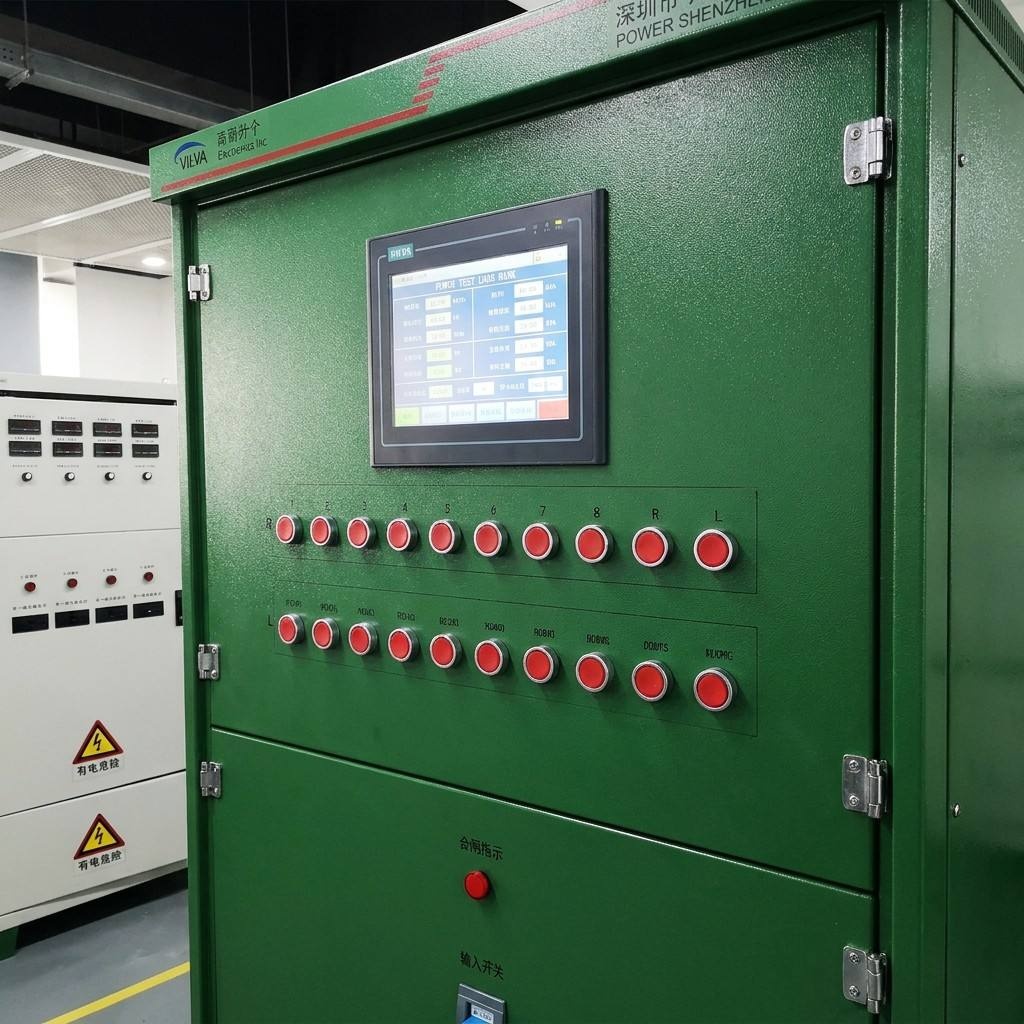

3.3 Display mode: Touch screen displays voltage, current, power factor, frequency, active power, reactive power, etc;
3.4 Loading method: Power grading setting. Local touch screen control for loading/unloading; Customers can input the required power level according to their testing needs;
3.5. Load accuracy: ± 5%;
3.6 Protection level: IP20/IP54
3.7 Working mode: Can work continuously;
3.8 Fan noise: ≤ 80 decibels at a distance of 1 meter from the load;
