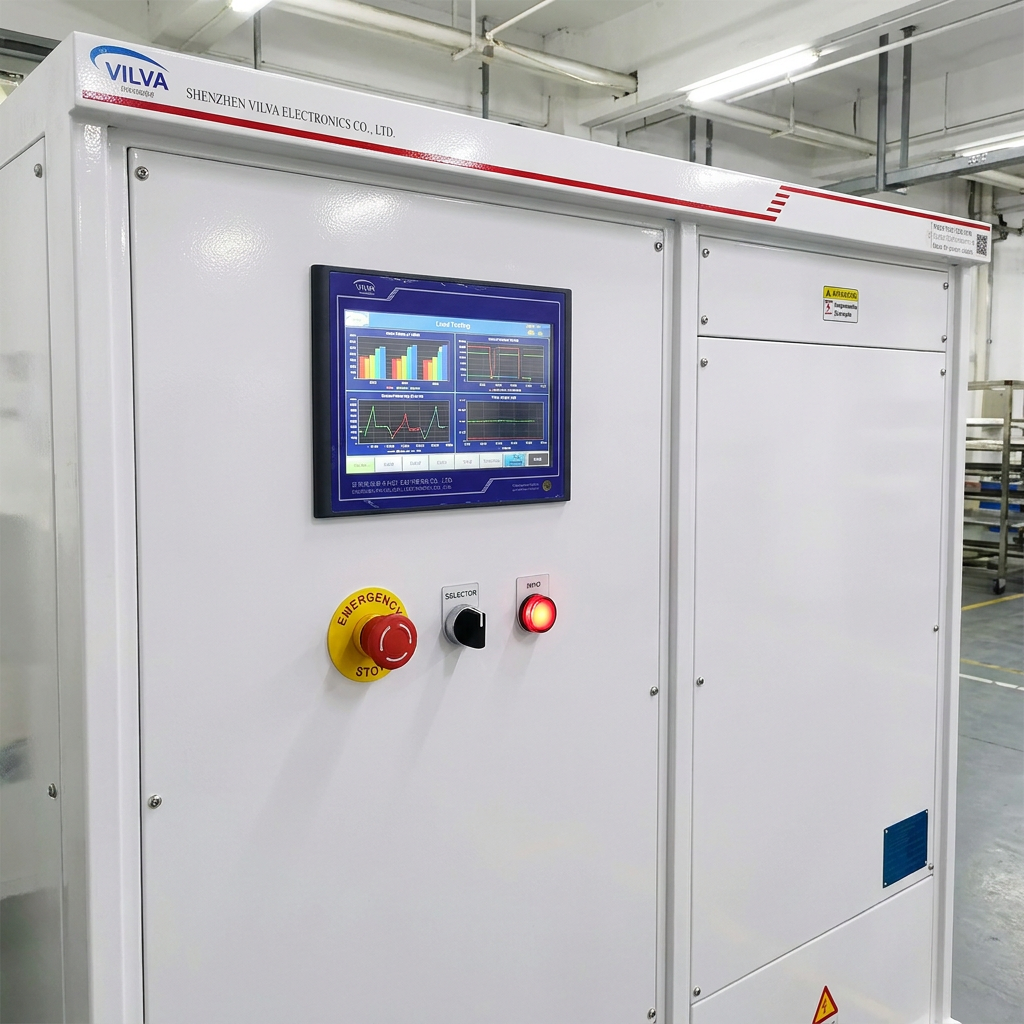

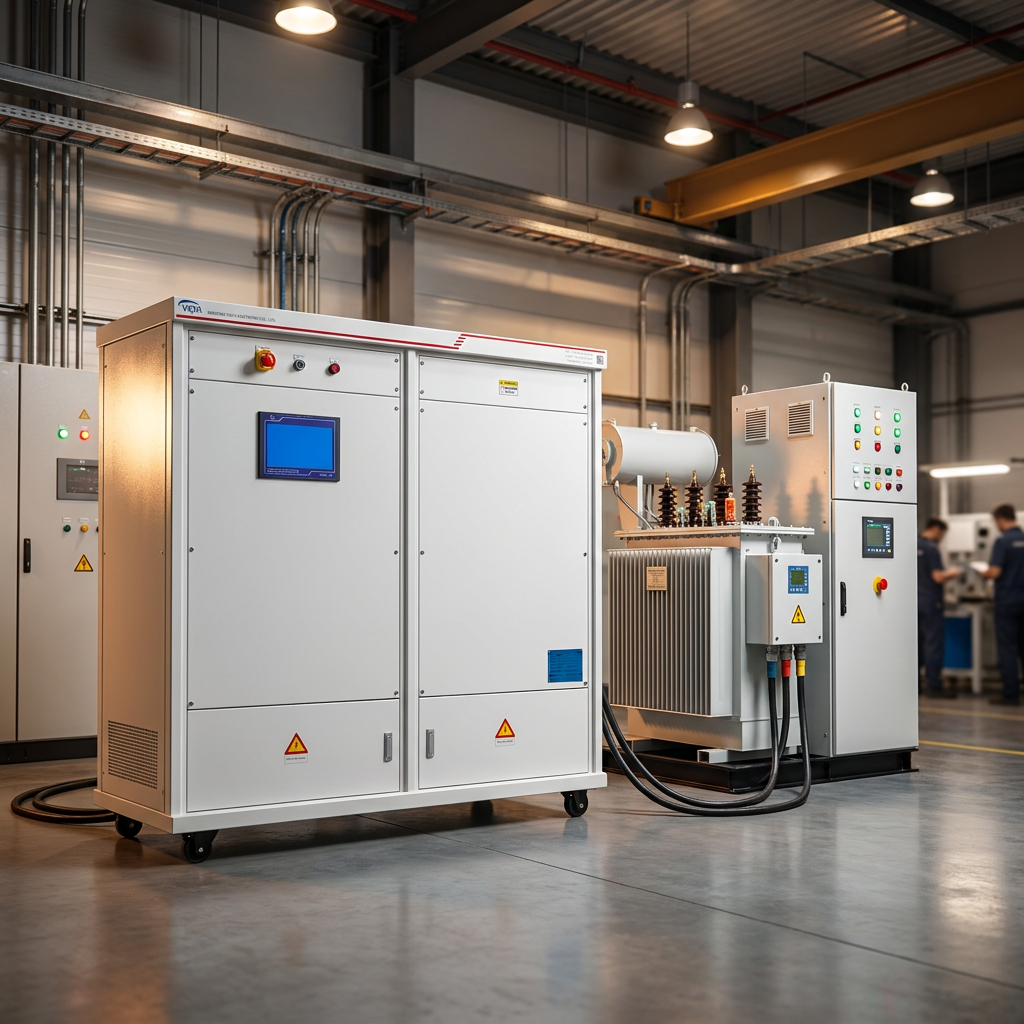

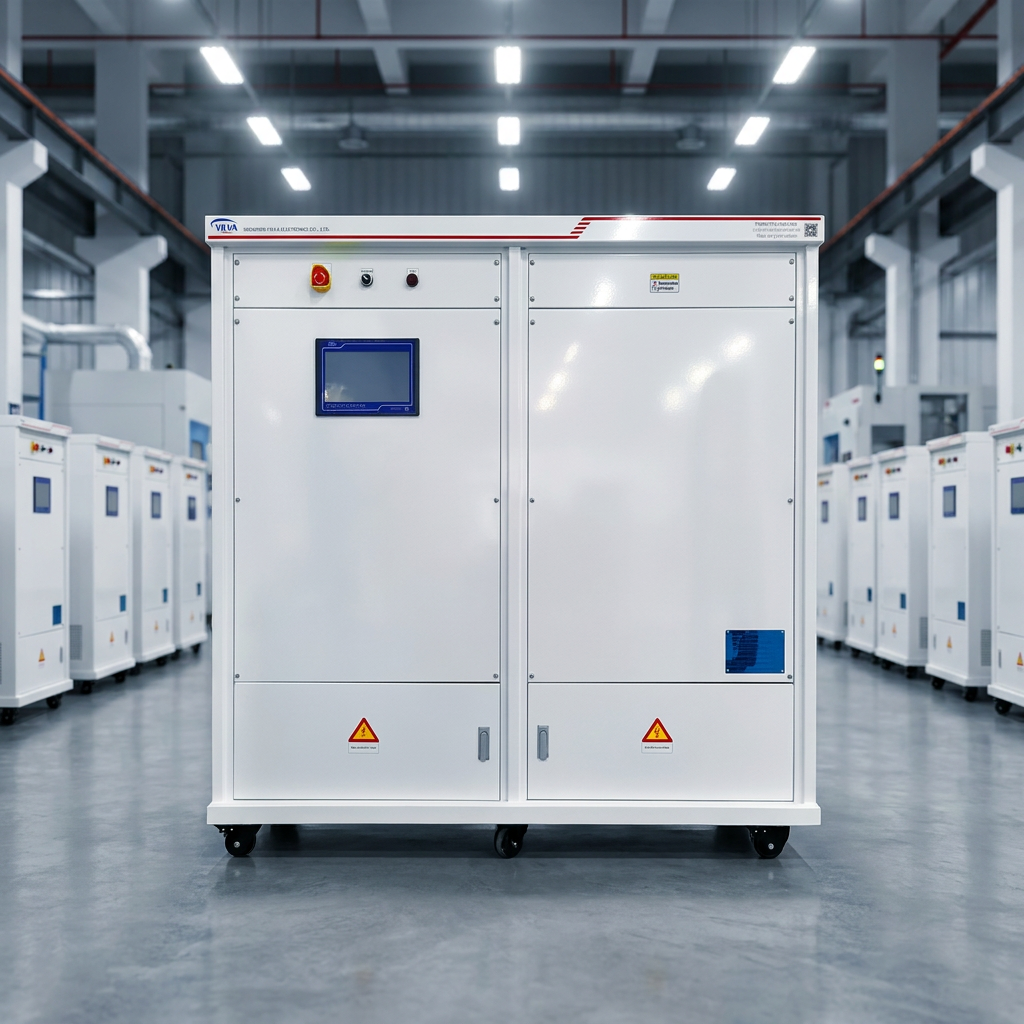

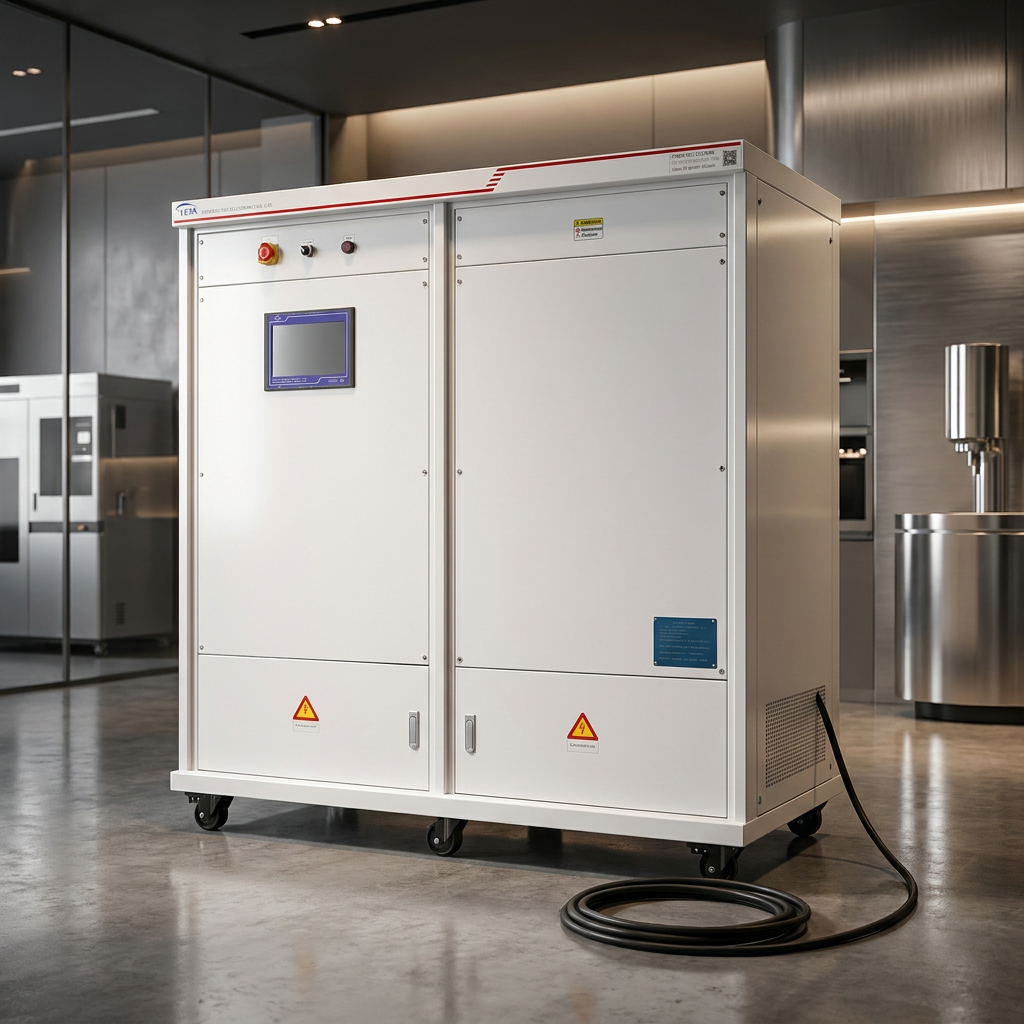

This multi-channel DC resistive load bank is configured with 8 independent channels, each channel supports rated DC 56V input and 60kW full load capacity, total power reaches 480kW. As professional dummy load testing equipment, it is specially designed for mass production aging lines, lithium battery PACK testing labs and energy storage factory inspection. Every channel can work separately with independent parameter setting, realizing synchronous multi-group power product testing and greatly improving production test efficiency. Equipped with high-efficiency forced air cooling and full safety protection system, it supports long-time continuous full-load cycle operation.
Core Technical Specifications
1.Product Model: Multi-Channel DC Resistive Load Bank
2.Rated Voltage Per Channel: DC 56V
3.Single Channel Rated Power: 60kW
4.Total System Power: 480kW (8×60kW)
5.Channel Quantity: 8 independent controllable channels
6.Load Type: Pure resistive, no capacitive & inductive interference
7.Cooling System: High-flow forced air cooling for each channel
8.Control Mode: Independent regulation for voltage, current & power per channel
9.Display: Separate real-time digital display for every channel
10.Optional Function: RS485 communication, upper computer linkage & automatic data recording
Main Application Scenarios
1.Lithium battery PACK multi-group simultaneous discharge & capacity test
2.DC switching power supply mass production aging reliability test
3.Energy storage small battery module cycle life testing
4.56V DC charger & power adapter factory offline inspection
5.Power supply laboratory multi-sample parallel R&D verification
6.New energy battery production line automatic aging testing
