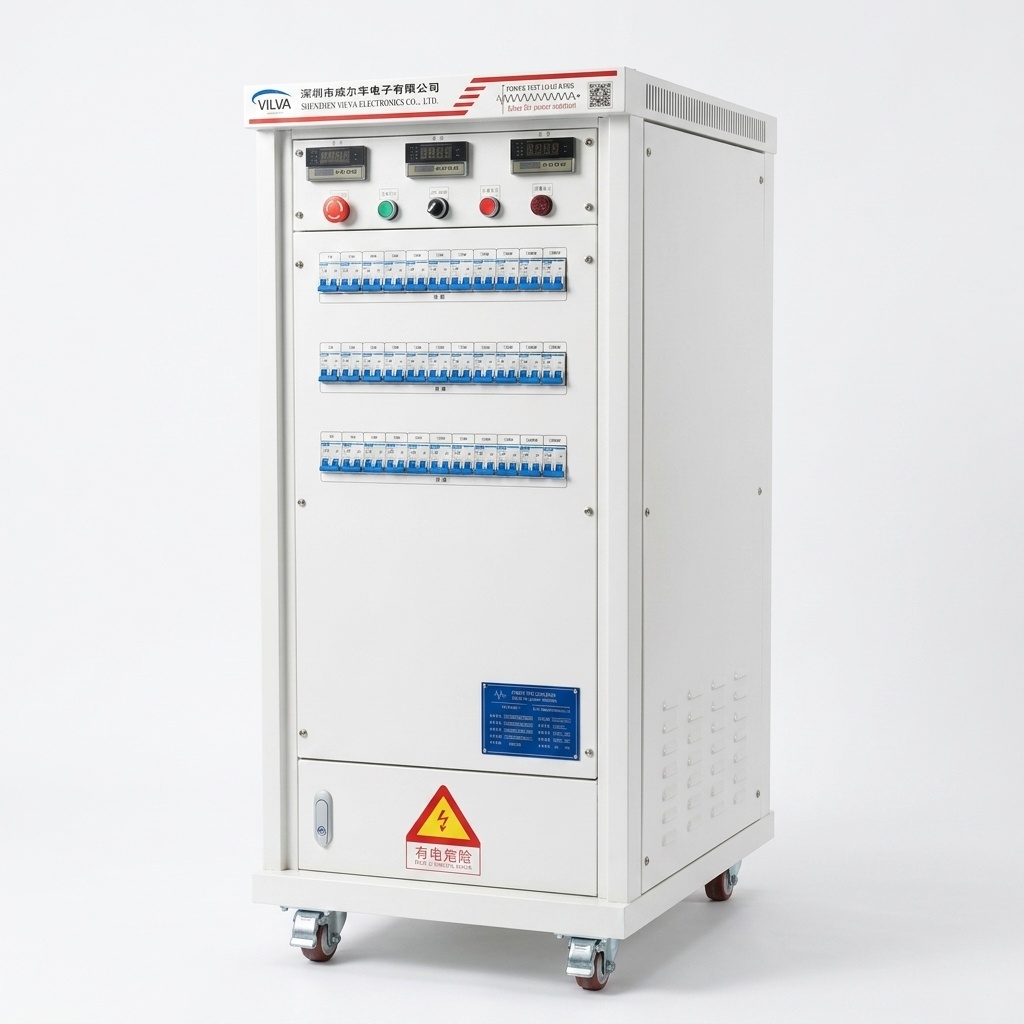

Our 110V 50kW AC/DC resistive load bank is a dual‑purpose dummy load tester for power system simulation tests. Combining AC and DC testing capability in one mobile unit, this pure resistive load creates stable, harmonic‑free loading for UPS, battery, generator and telecom power commissioning. Optional data recording and multiple safety protections support on‑site acceptance and unattended long‑duration discharge testing.
Core Pain Points We Solve
Q: Need separate AC load bank and DC load bank for different tests, high procurement cost & inconvenient storage
✅ Solution: All-in-one AC/DC dual-purpose design, one unit meets both AC and DC 110V load test requirements, save budget and storage space.
Q: Many electronic loads bring harmonic interference and cannot simulate real resistive working condition
✅ Solution: Adopt pure resistive load elements, zero harmonic pollution, truly simulate actual resistive load for accurate test result.
Q: Test site changes frequently, heavy equipment hard to transport and install

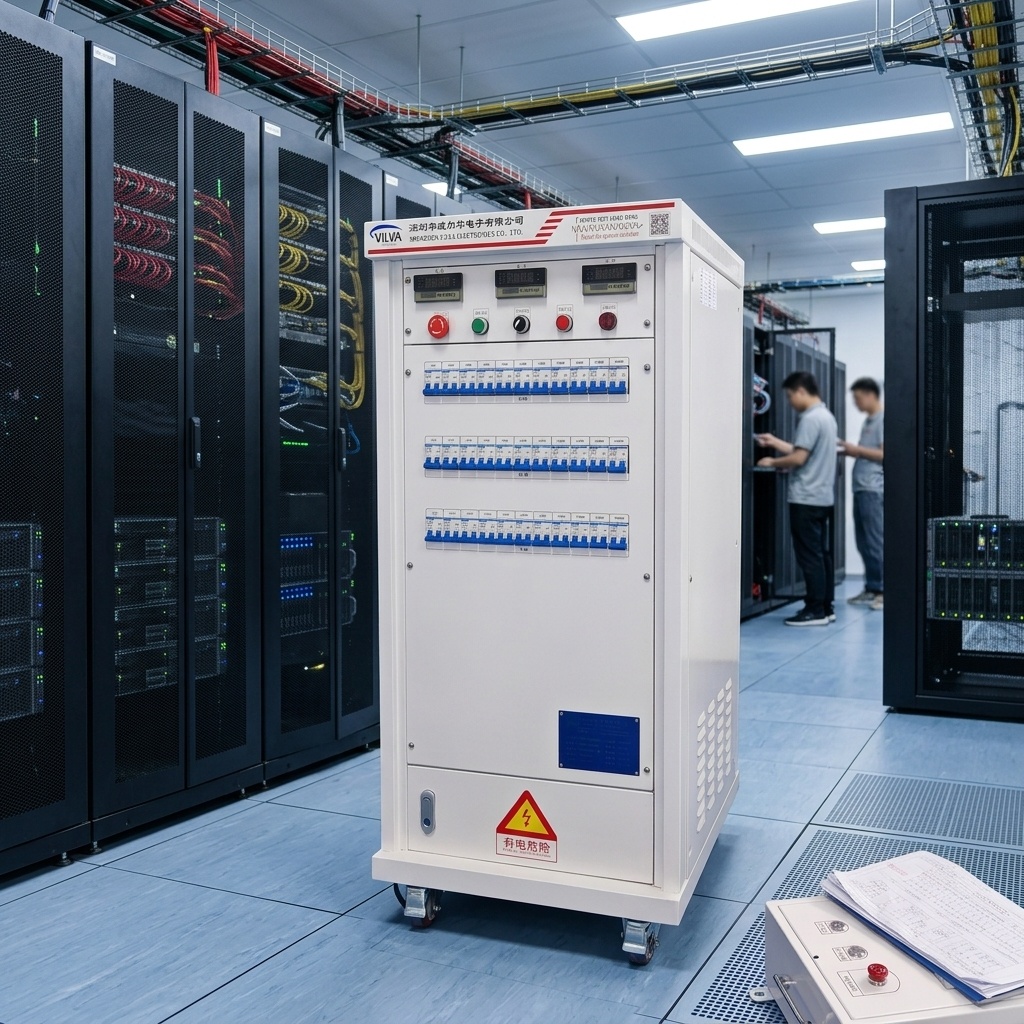

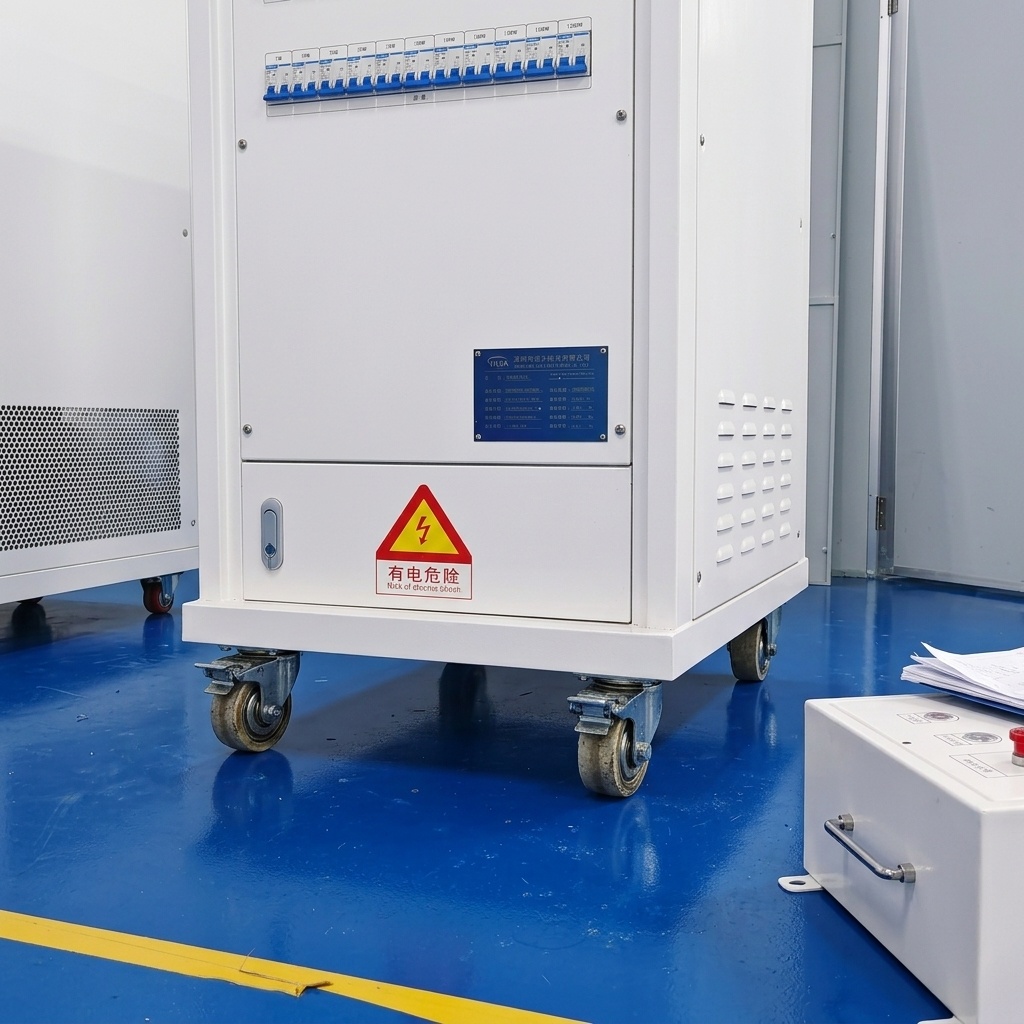

✅ Solution: Mobile cabinet with heavy-duty casters and quick terminals, fast wiring and flexible relocation.
Q: Need test data and discharge curves to finish official acceptance documents
✅ Solution: Optional data logging module, real-time data recording and USB export of test report.
Q: Worried about overheating damage during long-time unattended discharge test
✅ Solution: Built-in over-temperature, overload protection + emergency stop button for safe overnight testing.
Typical Application Scenarios
This 110V 50kW AC/DC resistive dummy load bank is widely adopted by power maintenance teams, system integrators and test labs:
UPS acceptance & periodic discharge maintenance test
Battery pack capacity and aging test
Small generator set commissioning and load inspection
Power supply simulator verification
Telecom power cabinet routine testing
Substation auxiliary power system pre-acceptance test
Click Here to Start Contacting Us
RFQ
Q1: Does this load bank support both AC 110V and DC 110V testing?
A1: Yes. It is an AC/DC dual-purpose resistive load bank, compatible with 110V AC and 110V DC power system test.
Q2: Will it generate harmonics during loading?
A2: No. It uses pure resistive load, no harmonic distortion, ideal for power system simulation test.
Q3: Can it record and export test data for acceptance audit?
A3: Yes. Optional data logger captures real-time voltage, current and power. Data and curves can be exported by USB.
Q4: Can it run continuous long-hour discharge test?
A4: Yes. Equipped with efficient forced air cooling and multi-protection system, support unattended continuous testing.
Q5: Is it movable for on-site commissioning?
A5: Yes. Mobile cabinet with casters and quick connect terminals for fast wiring and easy transportation.
Q6: What safety protections does this load bank have?
A6: It comes with over-temperature protection, overload protection, short-circuit protection and emergency stop button to avoid equipment and power source damage.
Q7: Is the load adjustable step by step?

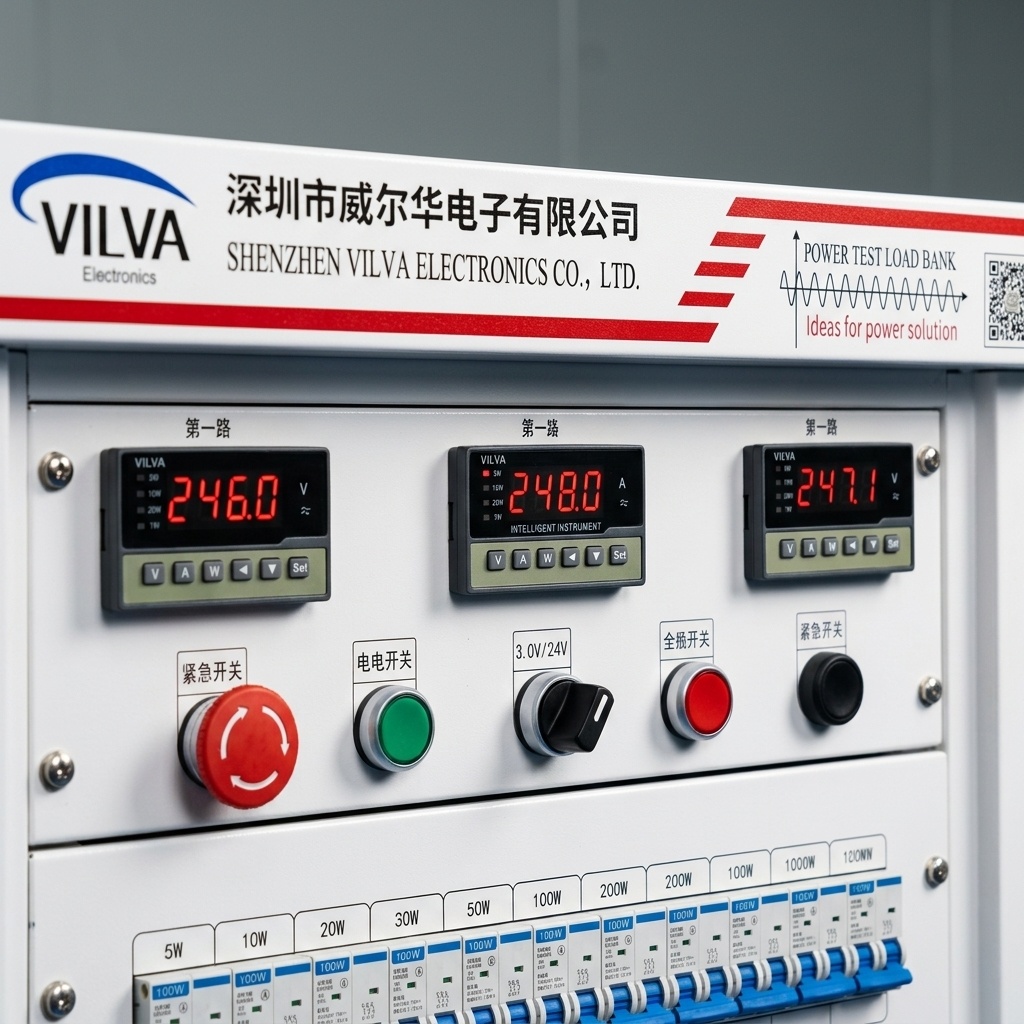

A7: Yes. It adopts stepwise load regulation, you can select different power levels flexibly according to your test requirement.
Q8: Can we customize other voltage or power ratings?
A8: Yes. We support custom voltage, power and current specifications based on your test project requirements.
Q9: What is the cooling method of this 50kW load bank?
A9: Forced air cooling. High-speed cooling fans keep resistive elements within safe temperature range under full load.
Q10: Can this load bank be used for battery aging test?
A10: Yes. It is widely used for battery pack capacity discharge, aging test and regular maintenance inspection.
Q11: What is the material of the internal resistive elements?
A11: High-grade alloy resistance wire, high temperature resistant, long service life and stable resistance value.
Q12: Do you provide operation manual and test video?
A12: Yes. We supply English operation manual, wiring diagram and operation video together with the machine.
