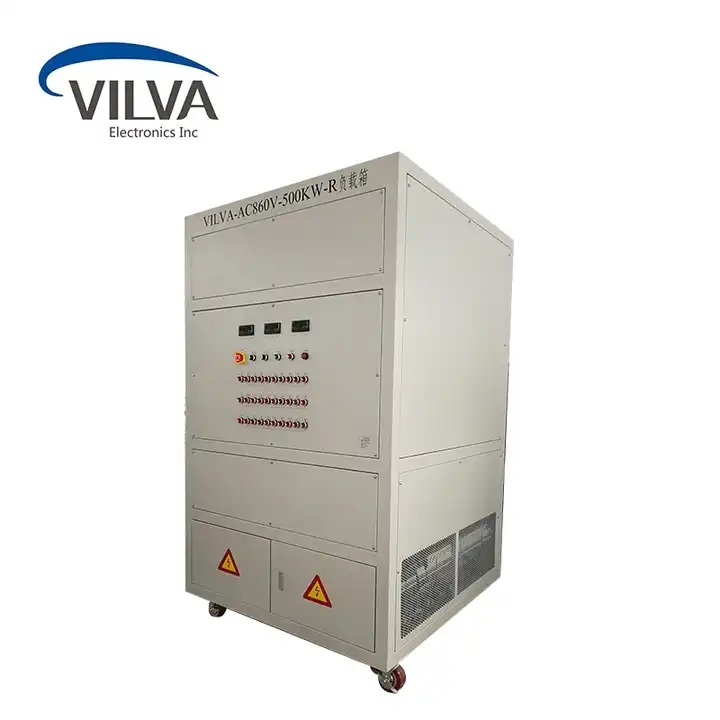

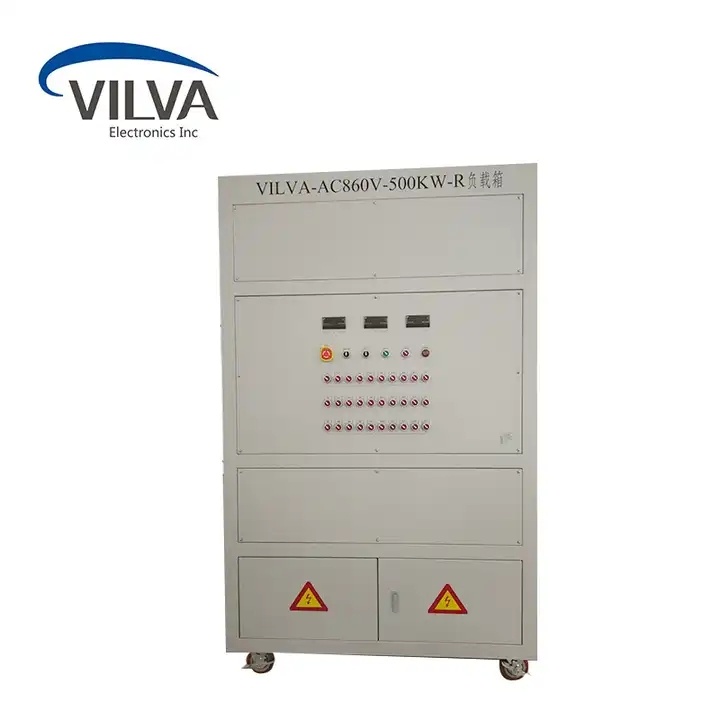

AC860V-500KW Resistive Load Bank

Type: Cabinet type Product name: AC860V- 500KW Resistive Load Bank Brand: Vilva (can OEM brand) Appication: Generator test/ UPS testing etc.
inquiry now
details

AC860V 500KW Resistive Load Bank For Generator Testing/ UPS testing




Product Description
1.Main application:
Resistive Load Bankis mainly used for Generator testing at power station, AC power supply, data center and other testing,May detect the performance of different loads of the AC power supply of the power station.The power input is uniformly optimized to meet the needs of different loads.

2.Main advantages:
a,  Resistive load adopt new type of consumption components,Resistance thermal shrinkage and sealing installed in stainless steel tube, steel tube with insulation radiator, good moisture and corrosion resistance, good heat dissipation, high insulation, safe and reliable.High power density of resistance elements, 3-phase current balance,no red heat phenomenon,The independent cooling fan ensures the heat dissipation and service life of the whole system.

b. The load overcomes the fact that the water resistance test system cannot accurately control the resistance value, the water is easy to boil, easy to scale, can not be subjected to sudden loading/depression load reduction test, and is difficult to control.It is an upgraded product of water resistance. This product has high safety, low maintenance cost, low noise and strong overload capability.

c. The fan adopts a small axial fan, with large wind volume, good heat dissipation, how noise and other characteristics.
