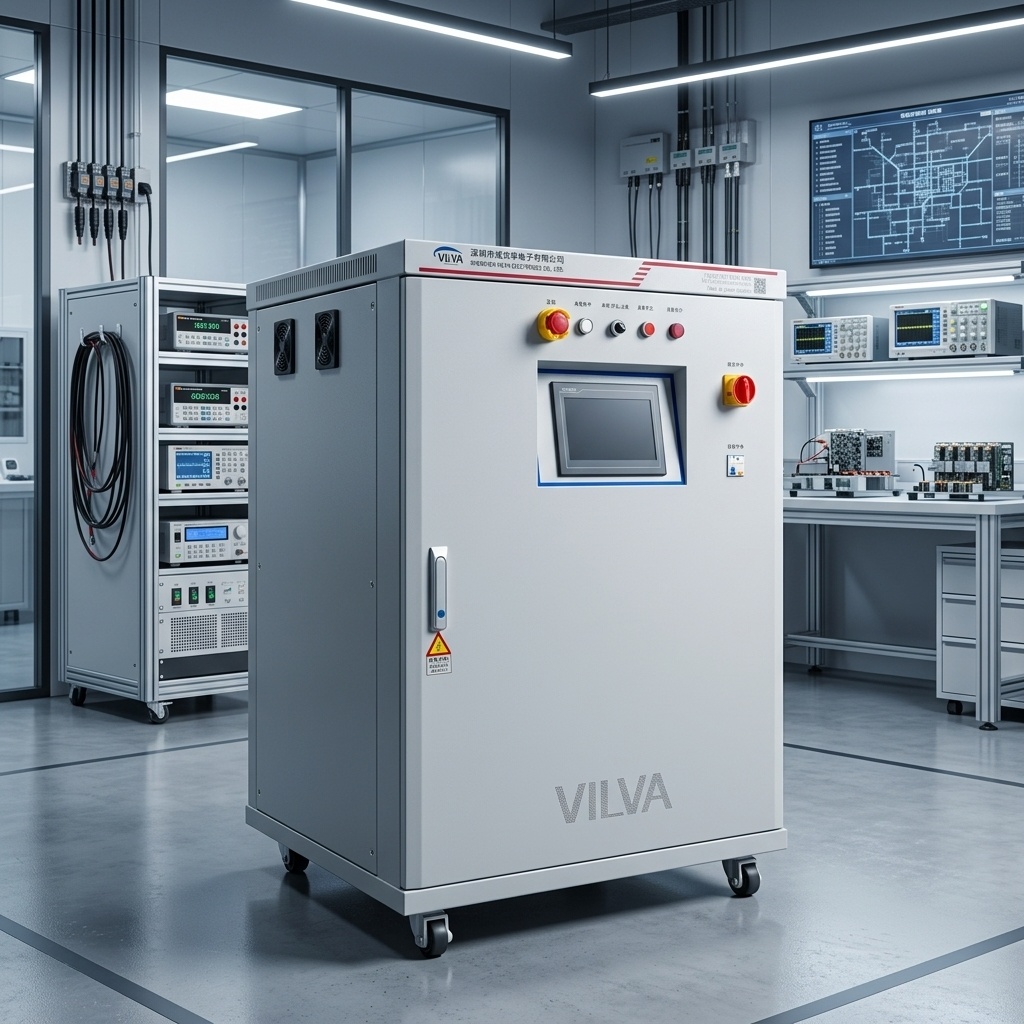

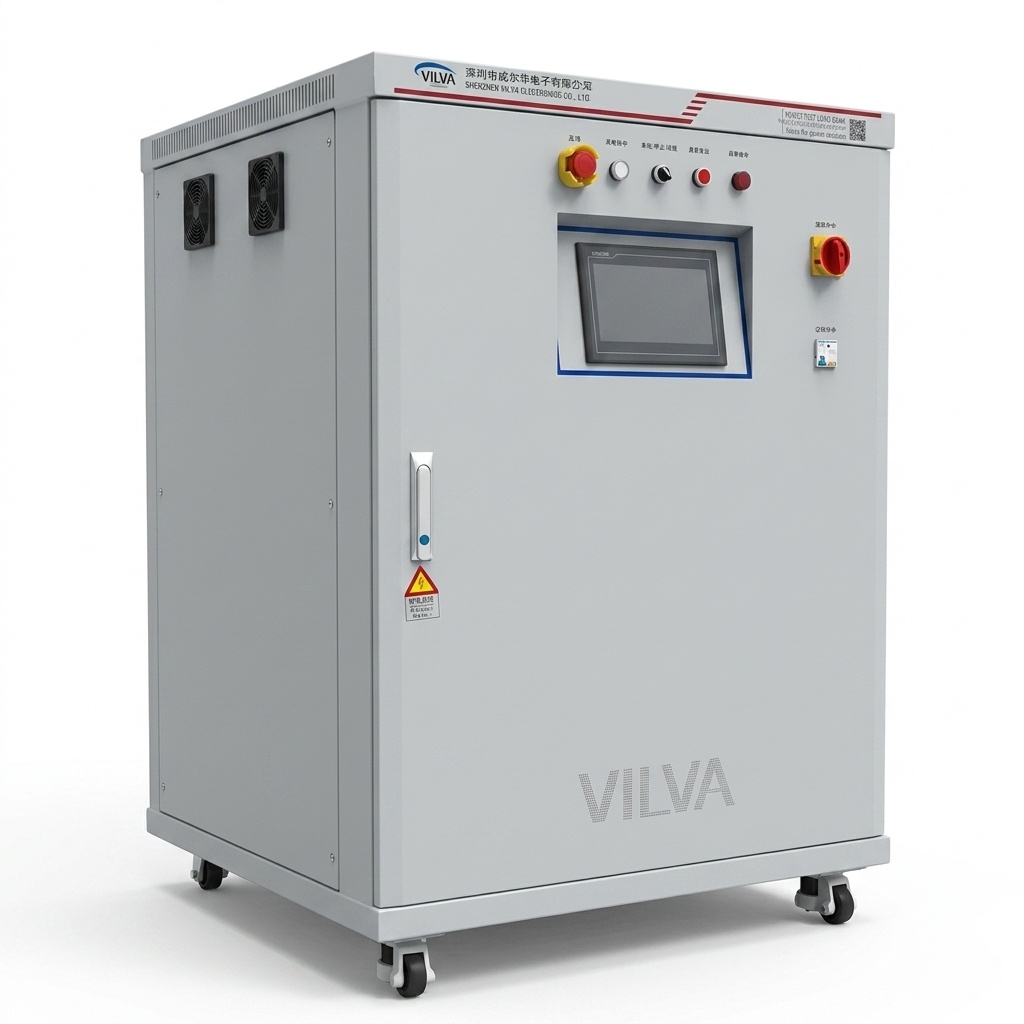

Multi-channel Air-Liquid Hybrid Load Bank Testing Equipment

    Multi-channel Air-Liquid Hybrid Cooling Load Bank
Our multi-channel air-liquid hybrid load testing equipment is high-density power simulation equipment specially developed for modern AI data center, server cabinet and whole machine cabinet commissioning. It combines air forced cooling and liquid cooling dual heat dissipation structures, solving the heat dissipation bottleneck of high-power continuous load testing, supporting independent multi-channel split control, which can simulate the real full-load operating state of GPU server cabinets such as GB200.

     Core Functions

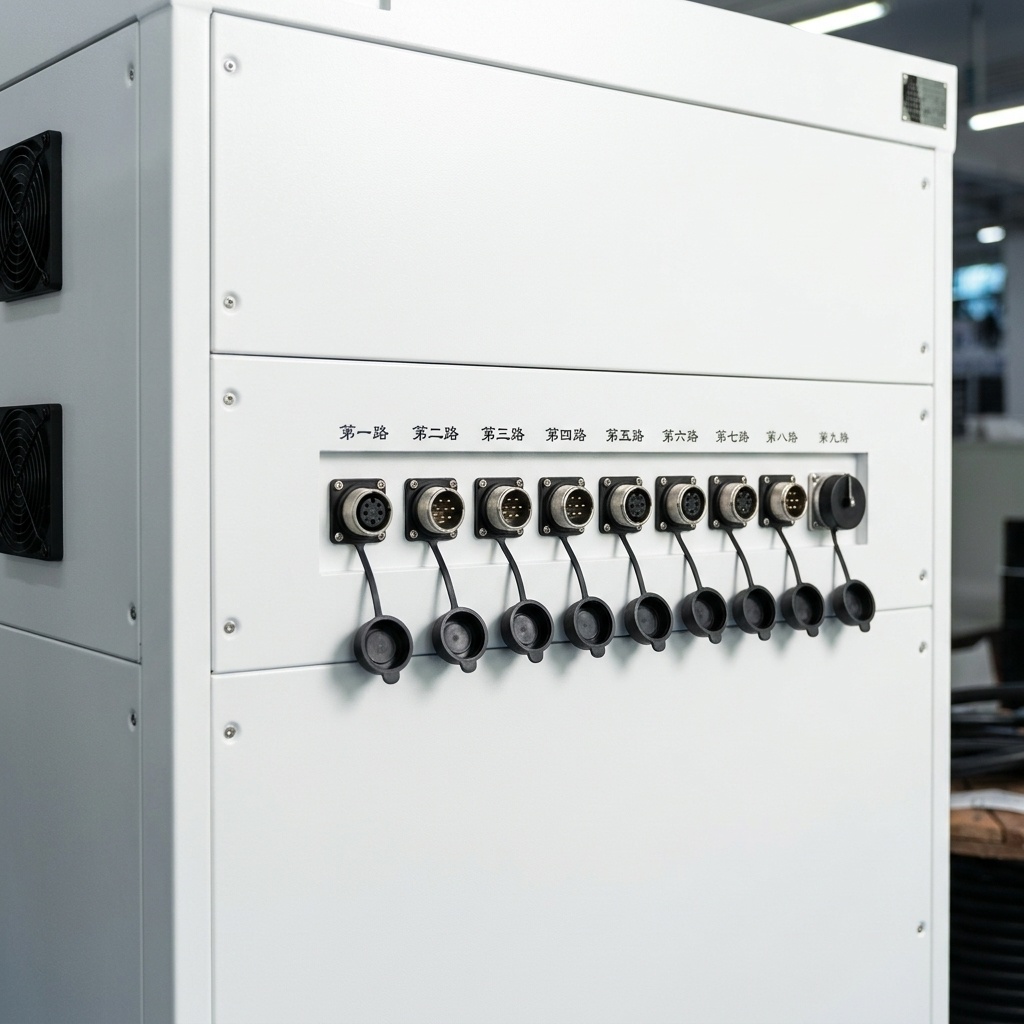

• Independent multi-channel control, each channel supports separate load regulation and real-time data collection

• Air-liquid hybrid heat dissipation system, low temperature rise under long-term full-load operation

• Standard Modbus TCP communication protocol, remote centralized group control and automatic test program editing

• Multi-layer safety protection: over-temperature, over-current, over-voltage, leakage and fan fault alarm

• Real-time display of power, current, voltage, temperature and other test data, automatic test report export

  Main Technical Parameters


• Single channel power range: 5kW~50kW, expandable multi-unit combination up to 500kW total power

• Cooling mode: forced air cooling + liquid circulation cooling hybrid design

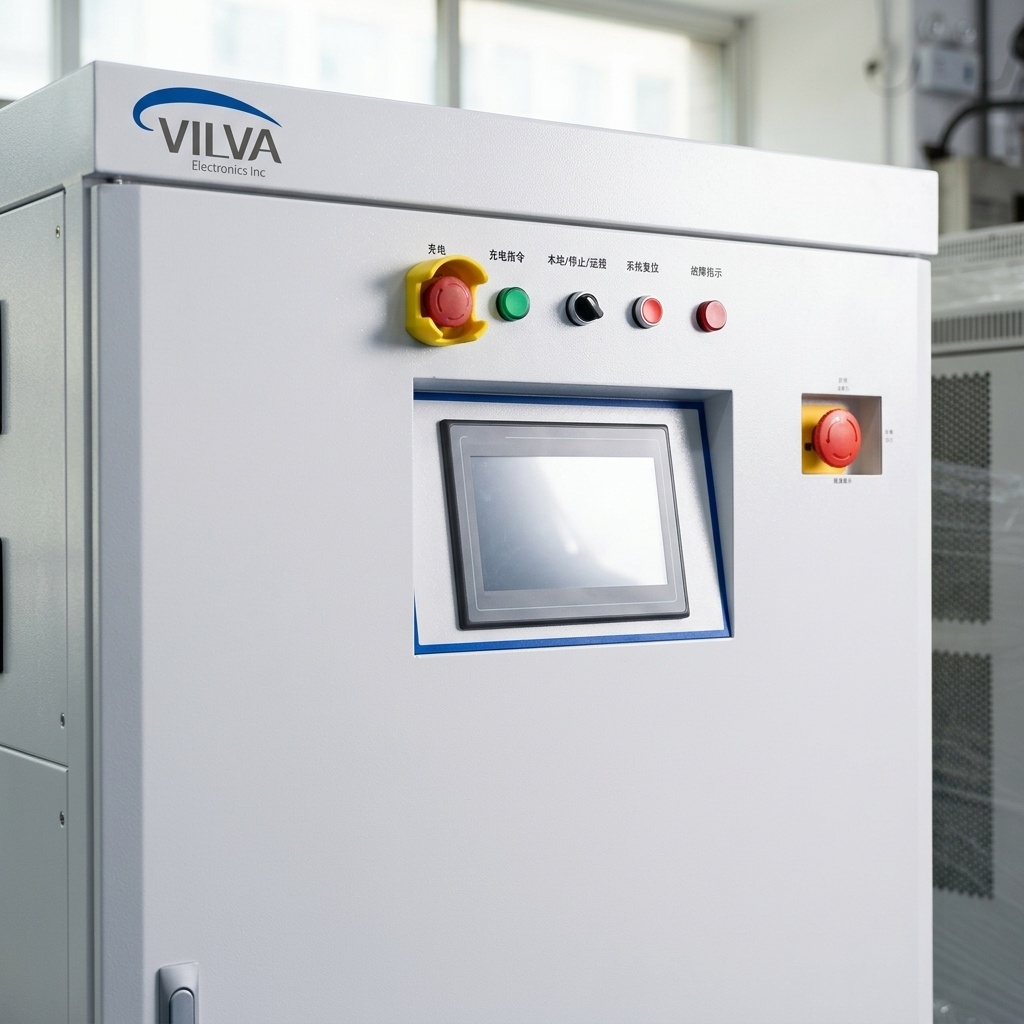

• Control mode: local touch screen operation + remote PC centralized monitoring

• Working voltage: 200/400V AC customizable

• Load adjustment resolution: 0.1kW precise step regulation

• Continuous working time: 72h full-load stable operation

  Product Applicatio
  Mainly used for AI server cabinet factory aging test, data center power system acceptance, CDU cooling matching test, new energy power supply and UPS load simulation test, widely applicable to cloud computing data center, IDC laboratory, server OEM factory and power test institutions.
