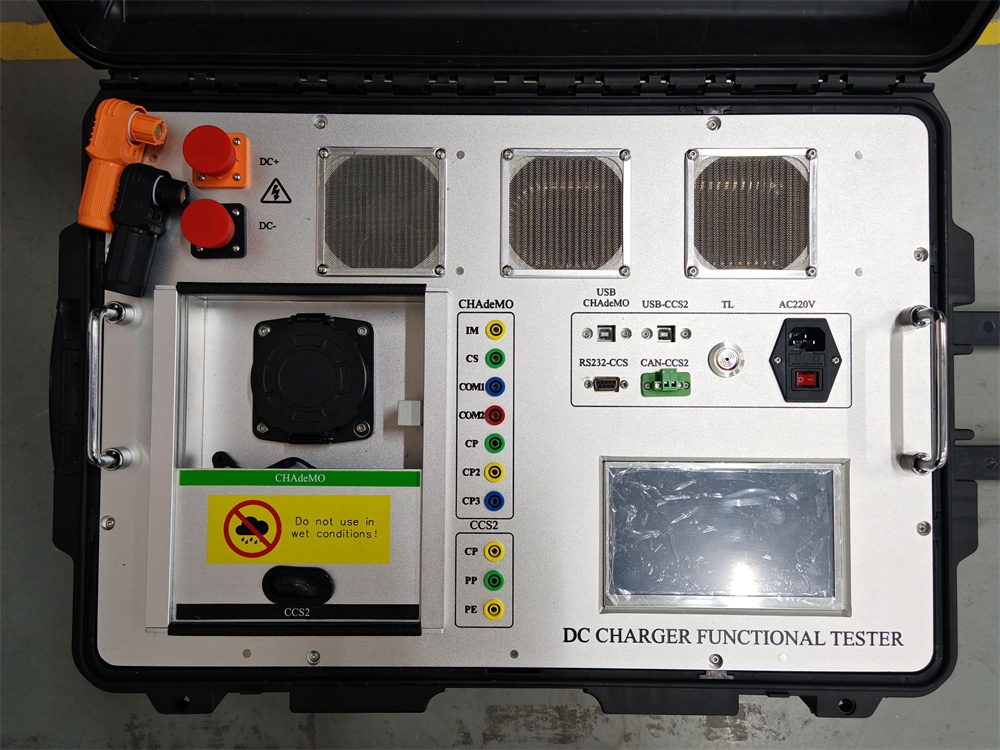

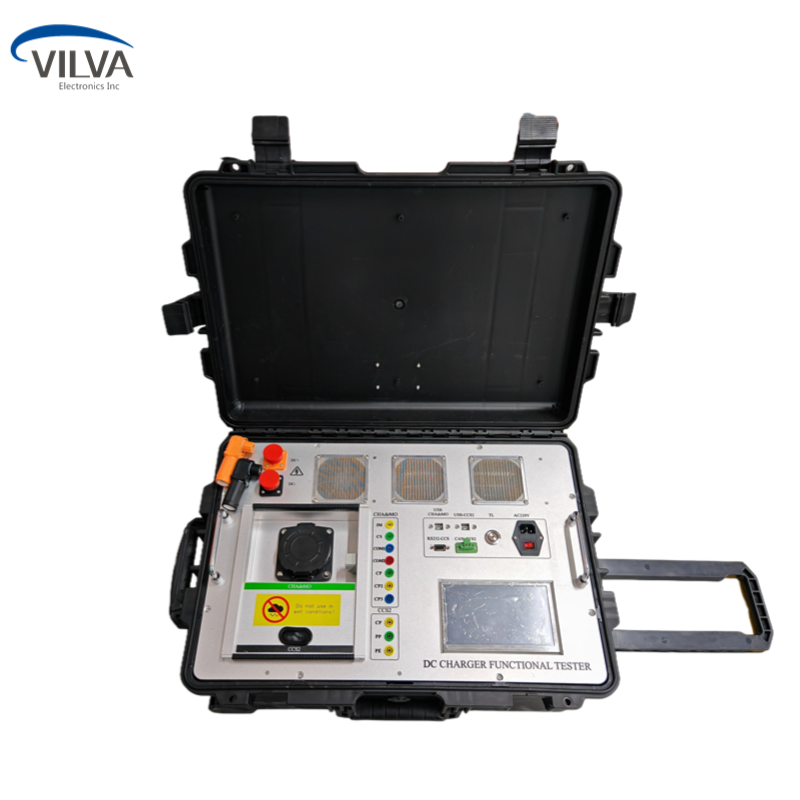

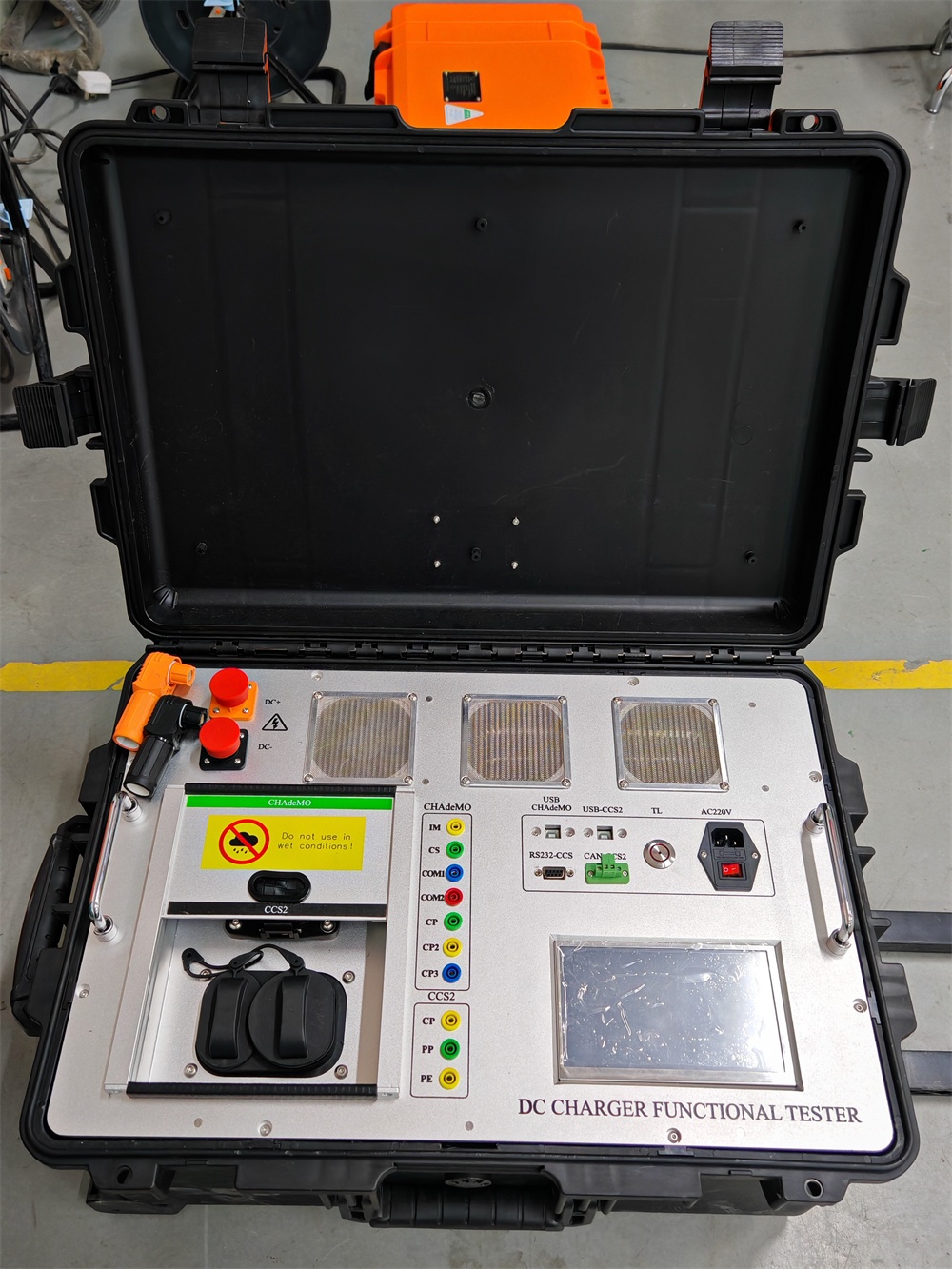

DC EV Charger pile tester European/Japanese standard
CCS1/ CHAdeMO Portable testing Equipment

DC EV Charger pile tester European/Japanese standard
CCS1/ CHAdeMO Portable testing Equipment
1. Working environment conditions
1.1. Environmental temperature:- 10~+50℃;
1.2. Relative humidity: ≤ 90%;
1.3. Altitude: ≤ 2500m;
1.4. Seismic intensity: VIII degree;
1.5. Other conditions: There are no debris at the inlet and outlet of ≥ 1 meter;
2. Rated electrical parameters
2.1 Rated voltage: CCS2-DC1000V, CHAdeMO-DC500V
2.2. Rated current: CCS2-3A, CHAdeMO-1.5 A;
2.3. Rated power:CCS2-3kW, CHAdeMO-0.75kW;
2.4 Working power supply: AC220V, 50/60Hz.
3. Technical indicators
3.1 Cooling method: forced air cooling;
3.2. Air inlet and outlet direction: Air inlet and outlet on the panel;
3.3 Load accuracy: ± 5%;
3.4. It is recommended that the continuous operation time with a single load be less than 2 hours;
3.6 Protection level: IP20;
3.7 Fan noise: ≤ 75 decibels at a distance of 1 meter from the tester;

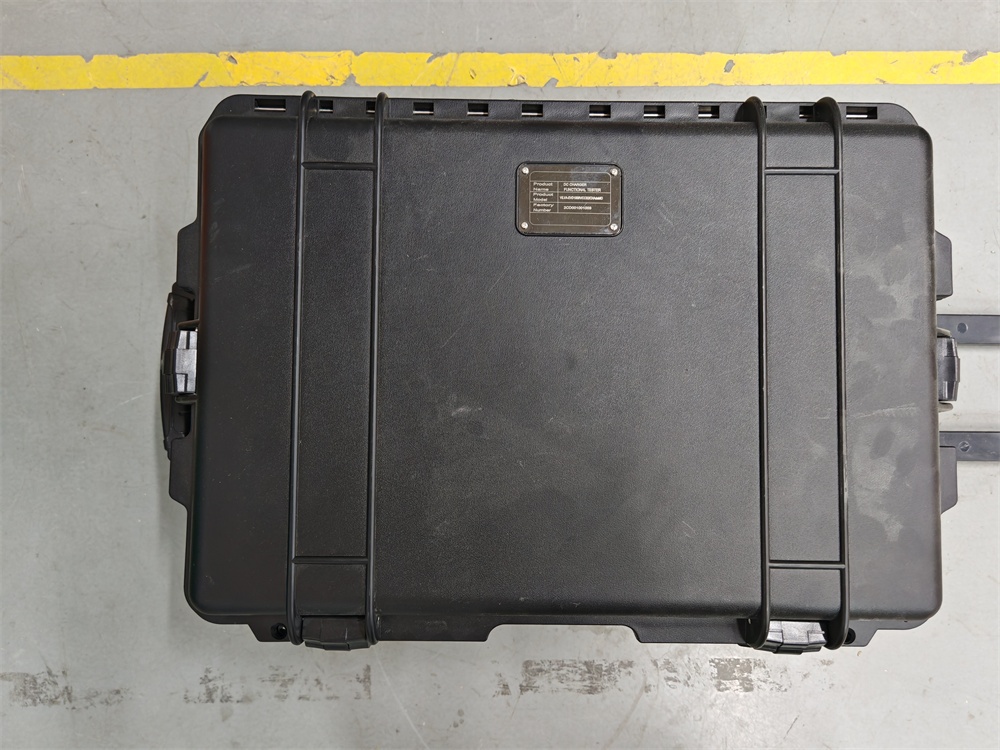

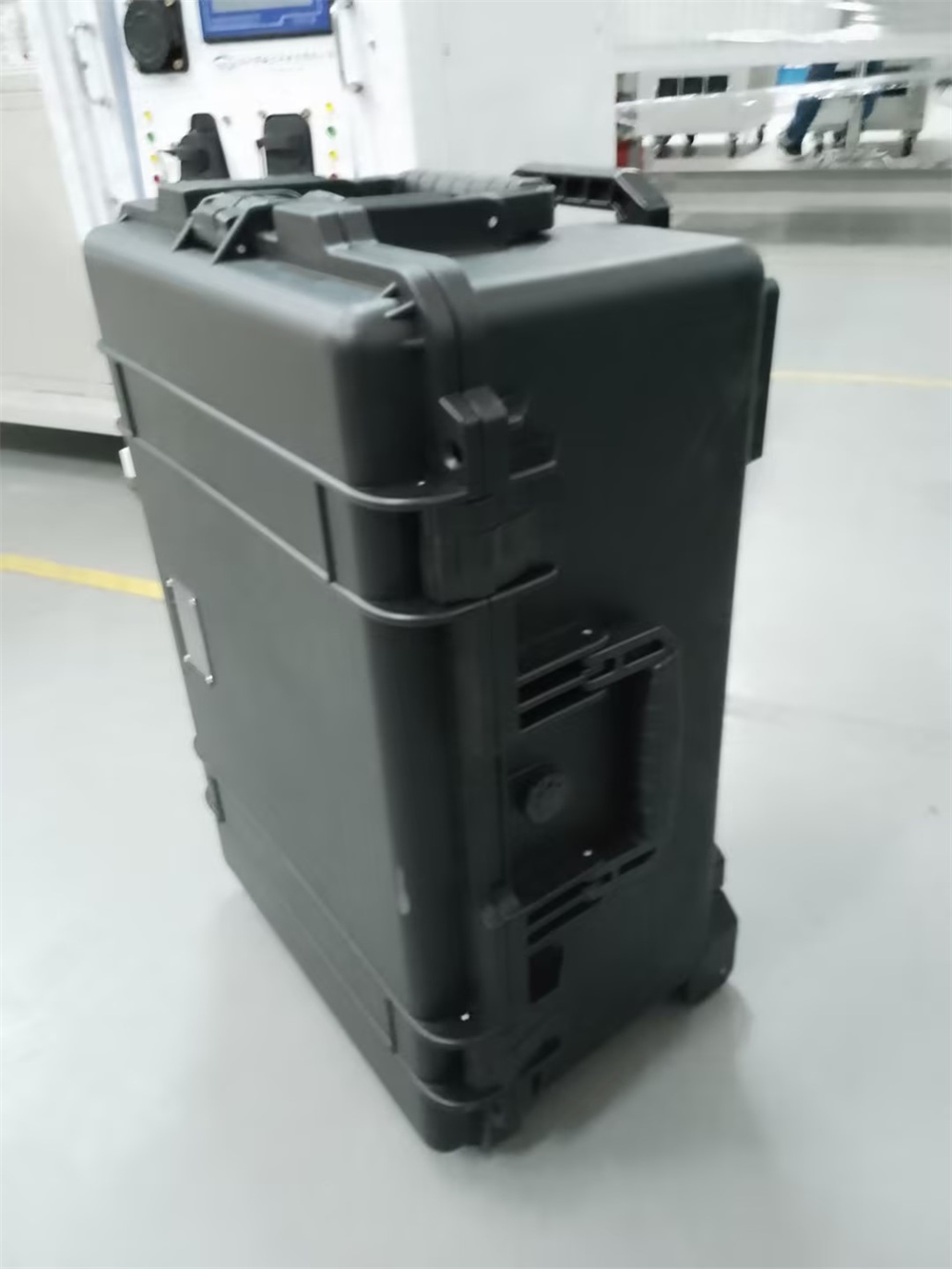

3.8 Box size: 670 * 450 * 310mm (width * depth * height);
3.9 Weight: about 35KG.

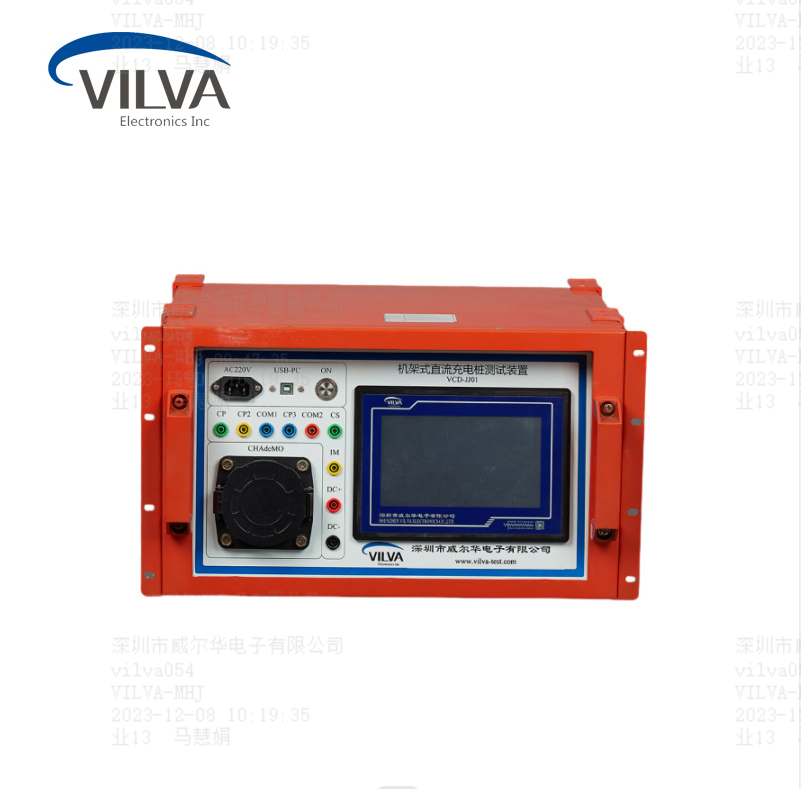

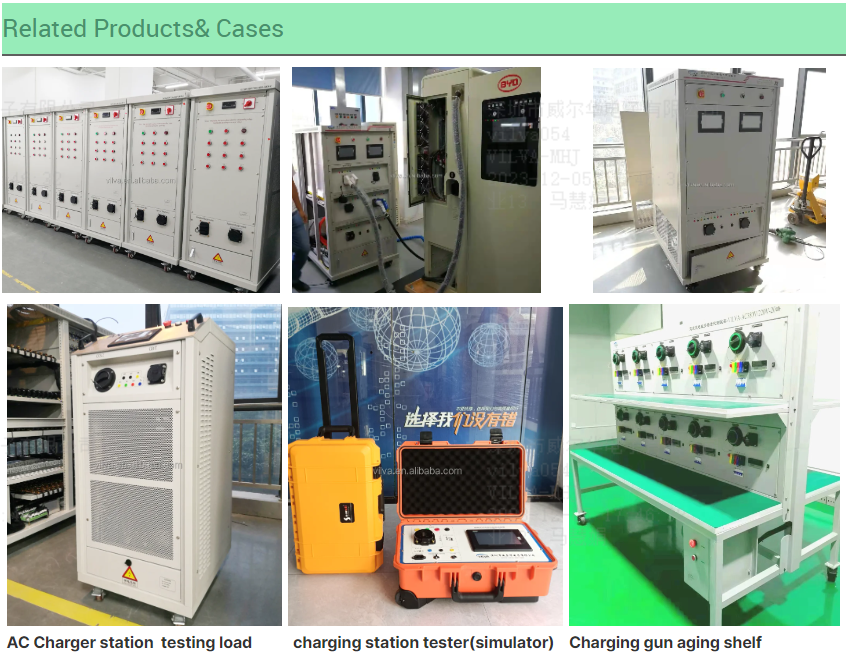

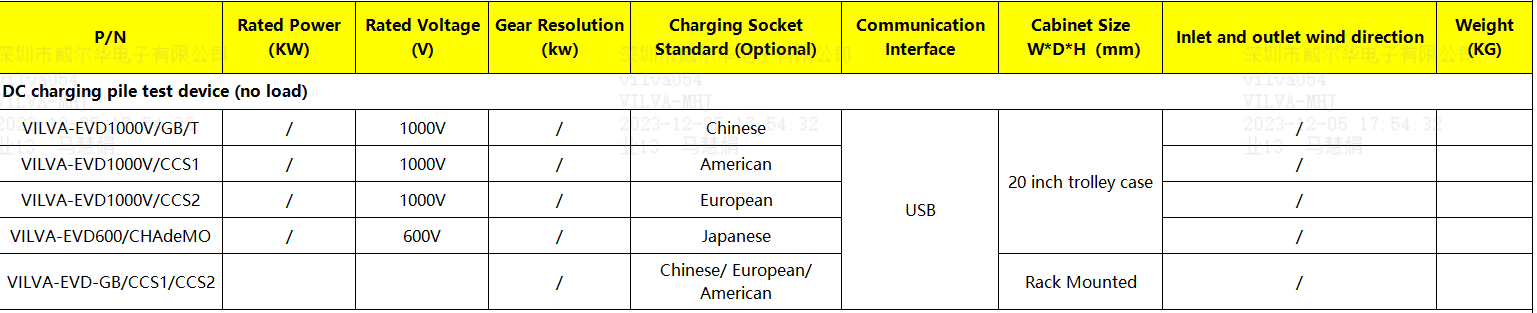

Other similar models for reference:
