1.Main Description

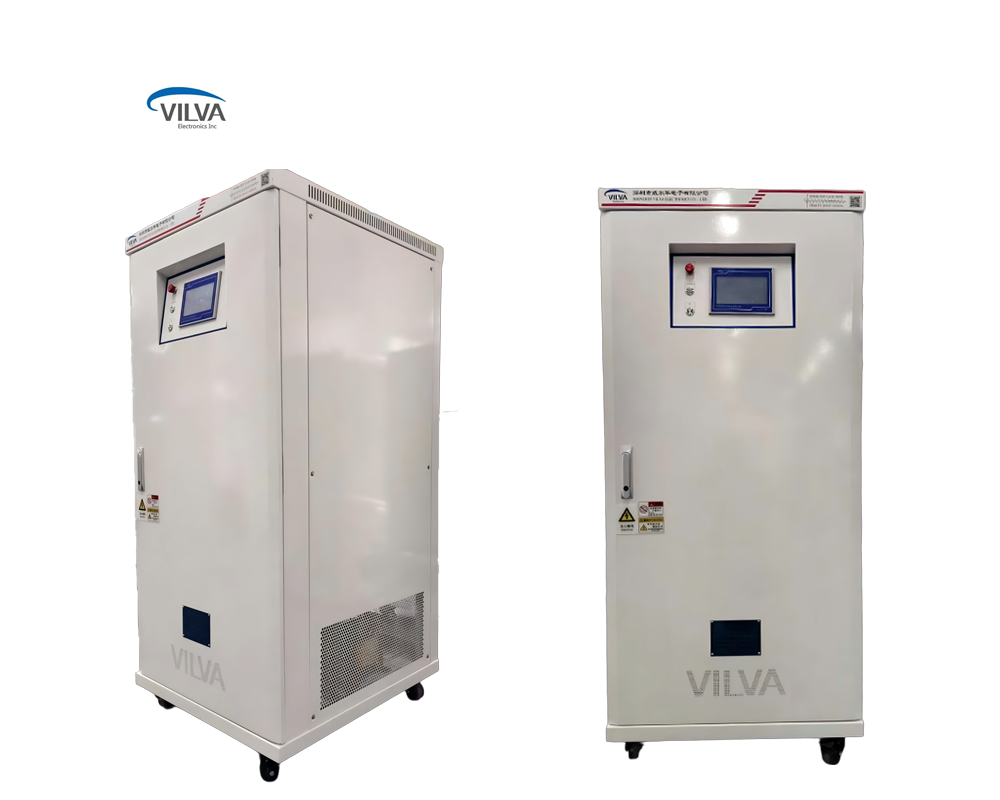

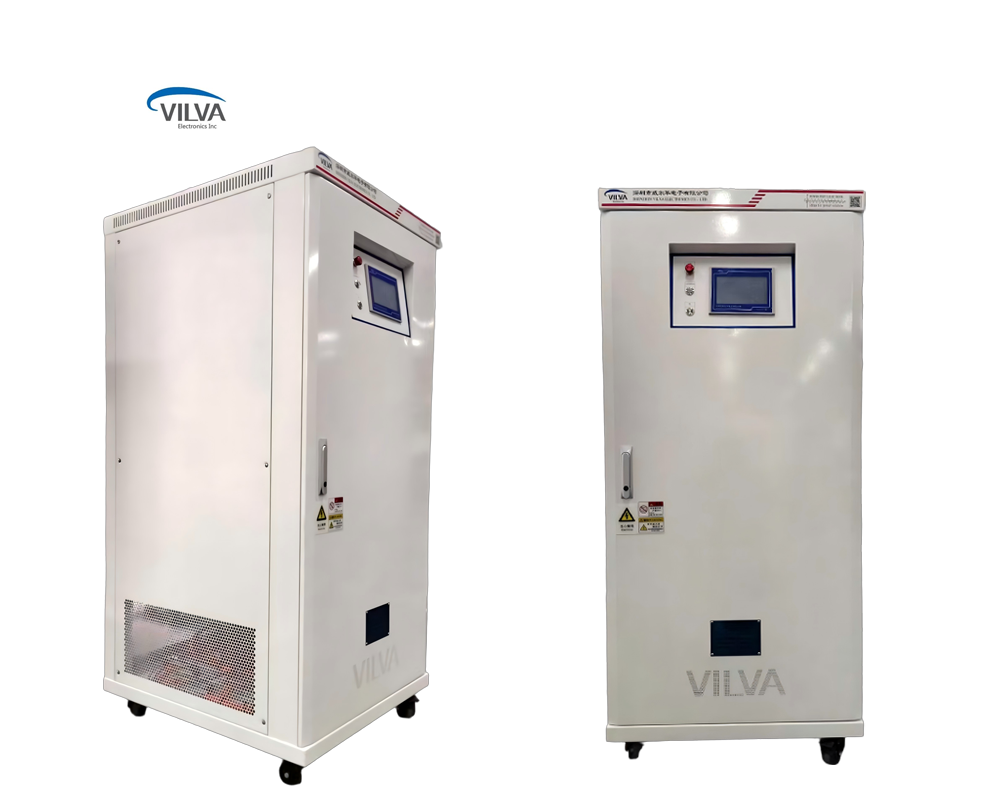

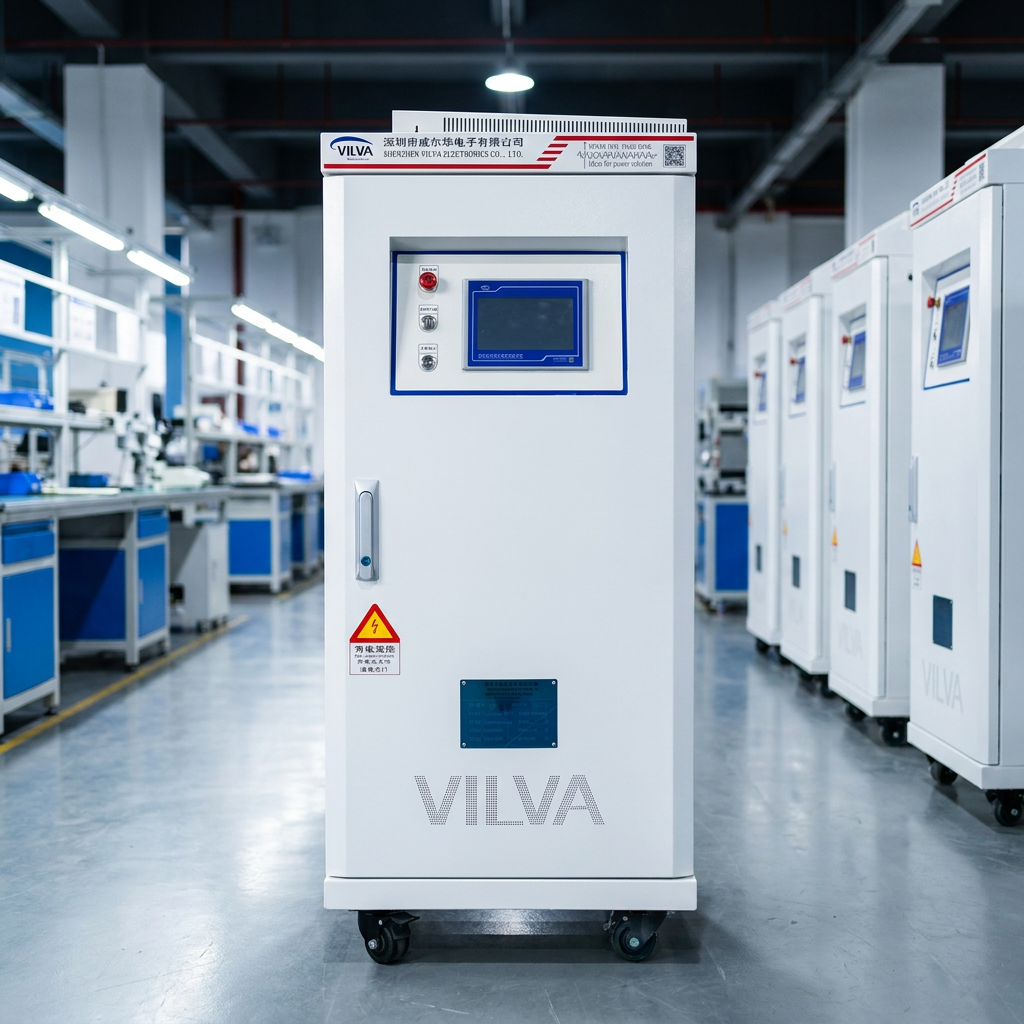

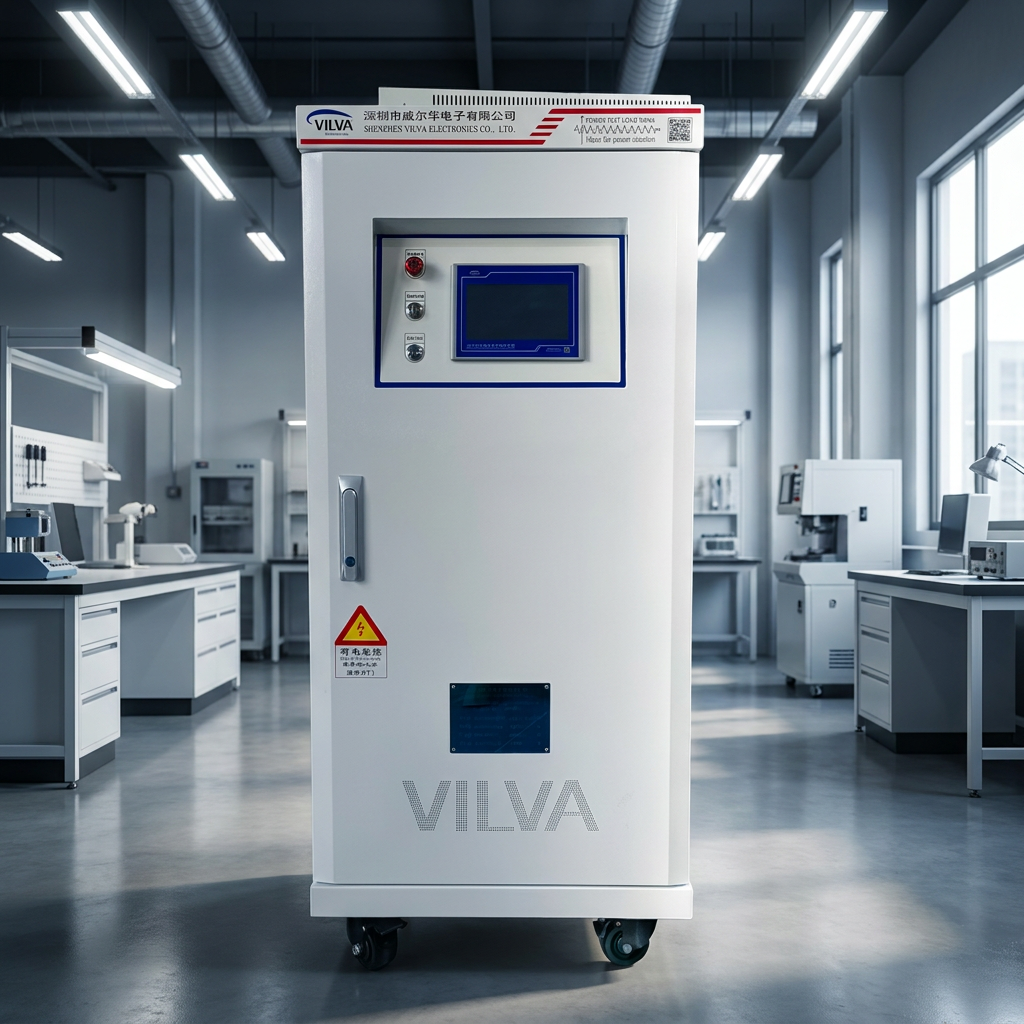

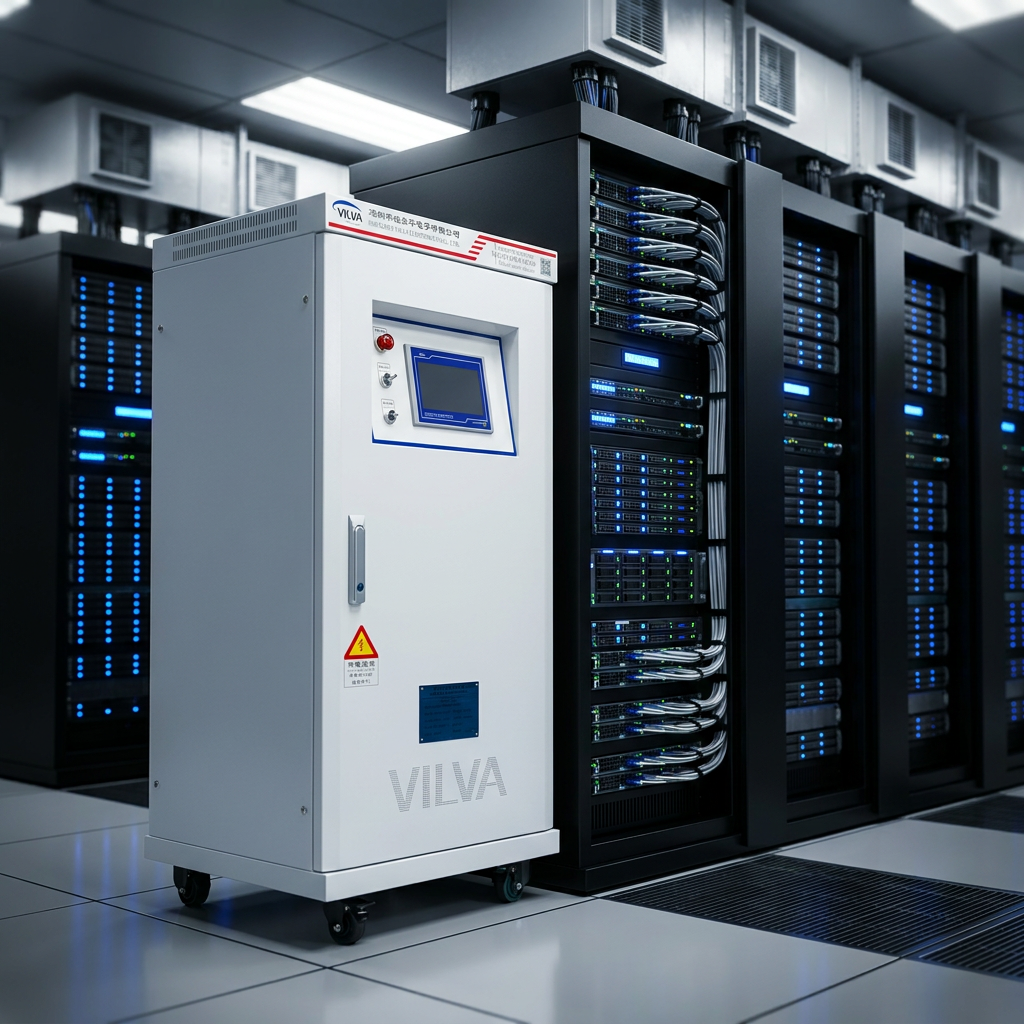

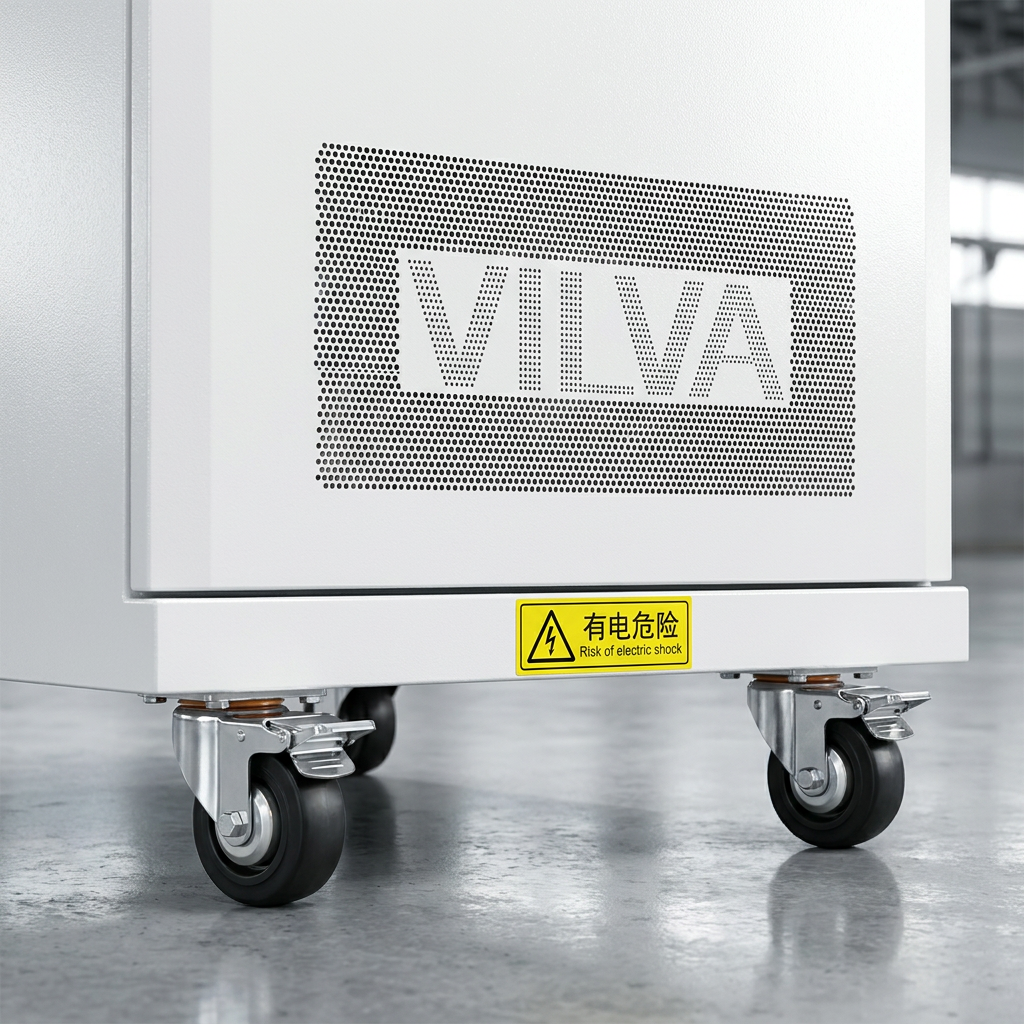

Our RLC AC Load Bank integrates resistive, inductive and capacitive three-in-one load modules, custom-designed for generator sets, UPS, PV inverter, battery pack and data center backup power performance testing. Widely applied for factory off-line aging test, on-site commissioning, load capacity verification and discharge experiment of various AC power supplies. Available in portable wheeled & fixed cabinet structure, with PC + mobile remote intelligent control system to realize real-time load regulation, data recording and automatic testing.
2.Core Advantages
Three-in-one RLC composite load: Independent adjustment for resistive, inductive, capacitive load separately, accurate simulation of actual industrial complex power consumption environment.

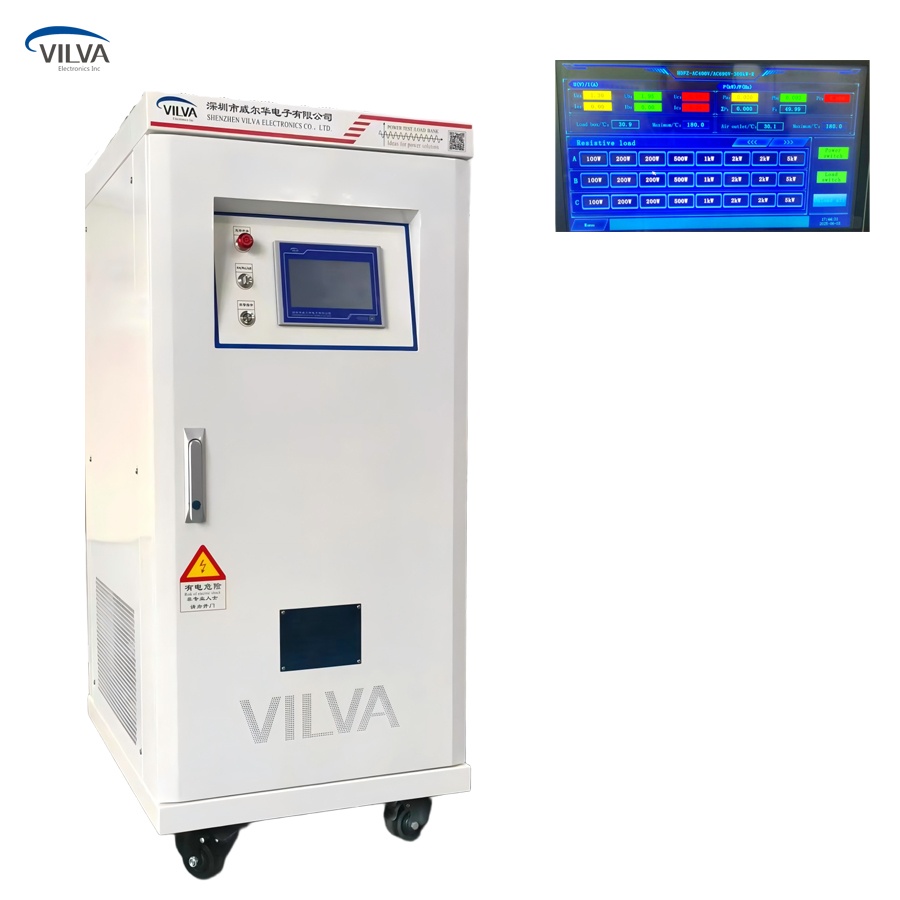

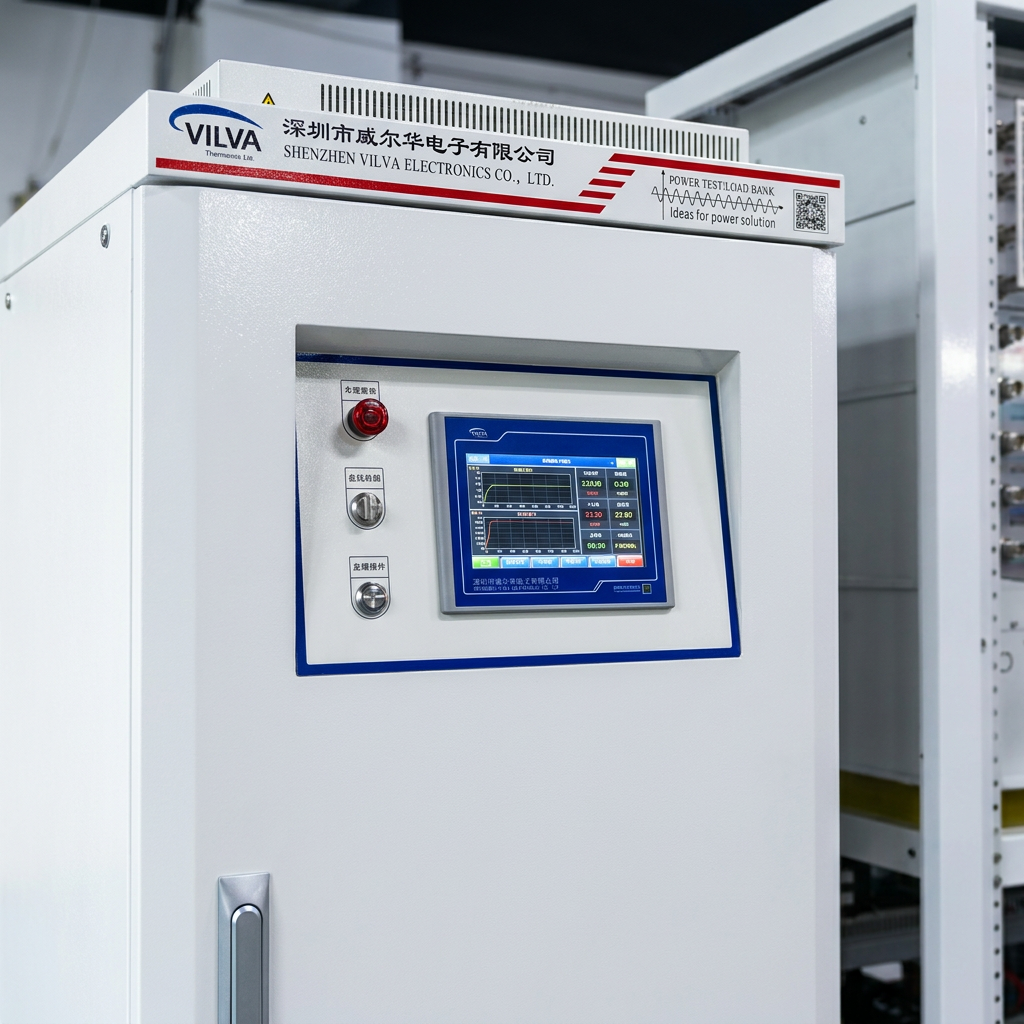

Intelligent remote control: Support local panel operation, PC software & mobile phone remote monitoring; real-time display voltage, current, power, power factor and whole testing data.
High safety protection: Over-temperature, over-current, over-voltage and short-circuit auto-protection system, forced air cooling design for long-time continuous running.

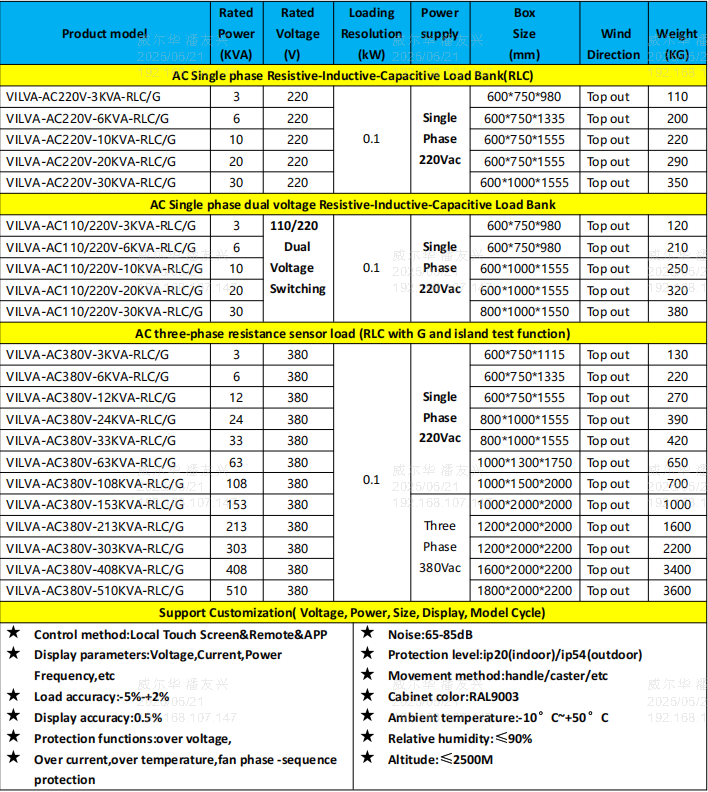

Flexible customization: Rated power from 10kW to 5000kW, single/three-phase optional, customized input voltage & cabinet size per clients’ test requirements.
3.Application ScenariosGenerator factory loading test & performance inspection
UPS / Inverter aging & full-load discharge test
Solar PV energy storage battery group discharge experiment
Data center standby power acceptance & regular maintenance test
Power bureau, electrical laboratory comprehensive RLC characteristic testing
